Stanley #100 Squirrel tail Block Plane

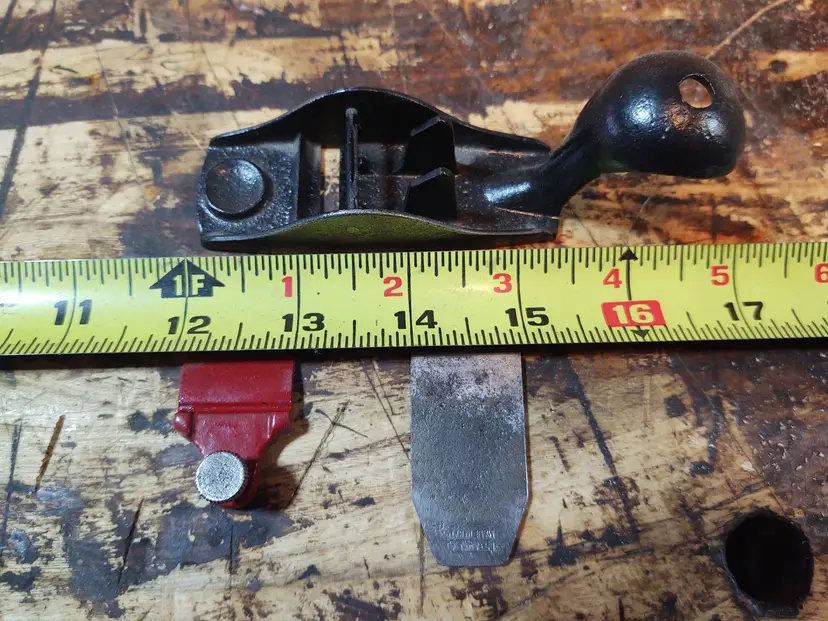

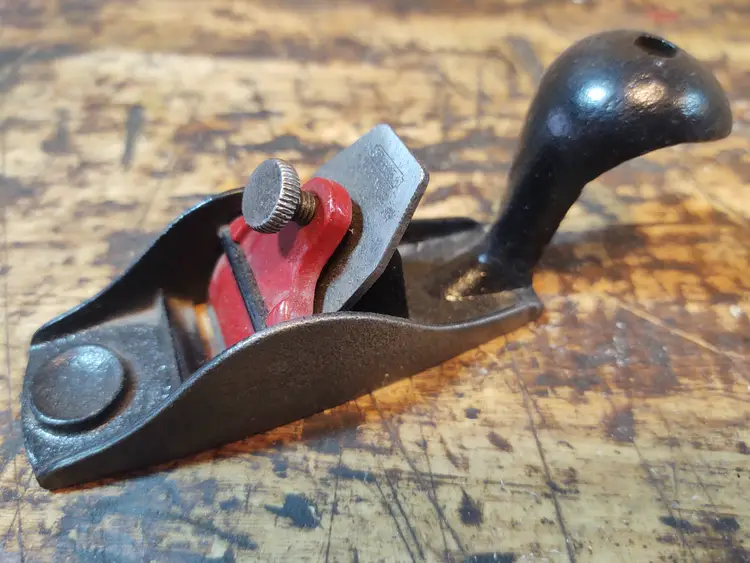

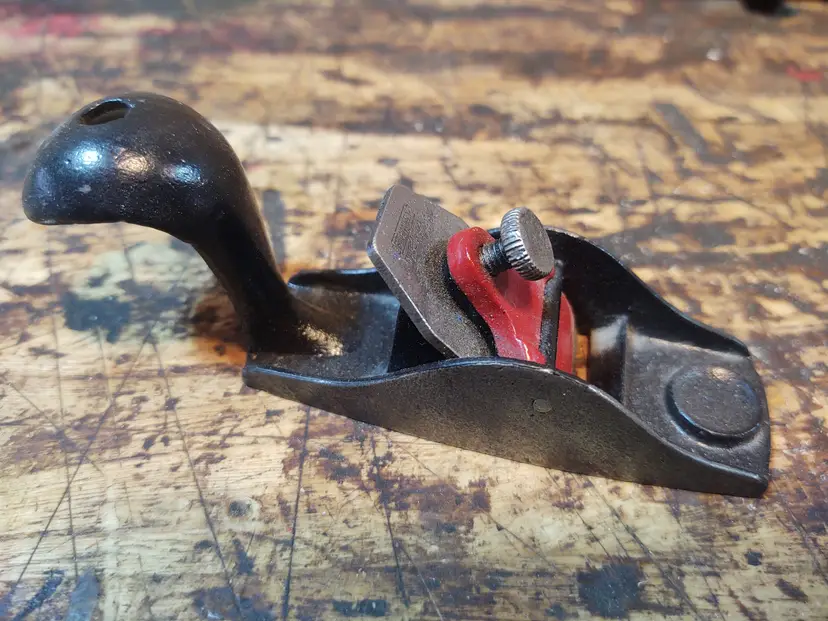

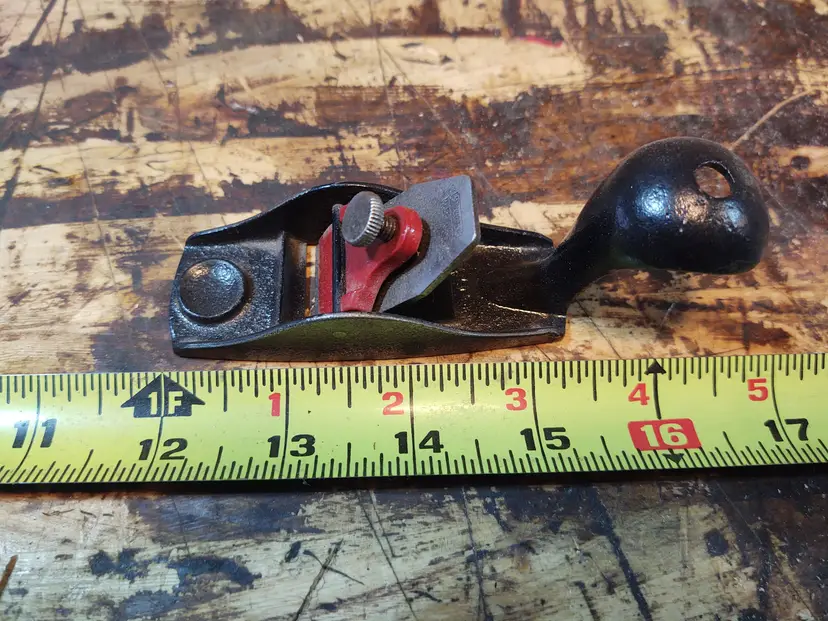

Stanley #100 Squirrel tail Block Plane . The Stanley #100 Squirrel Tail Block Plane is a diminutive, palm-sized hand plane specifically designed for fine work, model making, and pattern work. Its most distinguishing feature is the curved, "squirrel tail" handle at the rear, which provides better control and comfort than standard small block planes. . Key Specifications & Features Length: 3 ½ inches. . Blade Width: 1 inch. . Weight: Approximately 3/8 lb (about 150g). . Iron Angle: Standard angle (not low angle like many specialized block planes). . Adjustment: It is a non-adjustable plane; the blade is held in place by a simple lever cap and a thumb screw. Depth and alignment must be adjusted manually by tapping the iron. . Ergonomics: Features a circular depression at the toe for your index finger and the signature "squirrel tail" handle that fits into the palm. . Historical Information Production Years: Manufactured from 1898 to 1958. . Finish: Early models were "japanned" (a black lacquer finish) all over. . Wartime Changes: During WWII, the lever caps were often painted red instead of being japanned. . Evolution: Later models (post-1920) typically have "Stanley" embossed on the toe; the very first models did not have the model number embossed at all. . . . (My #100-032223-3)
